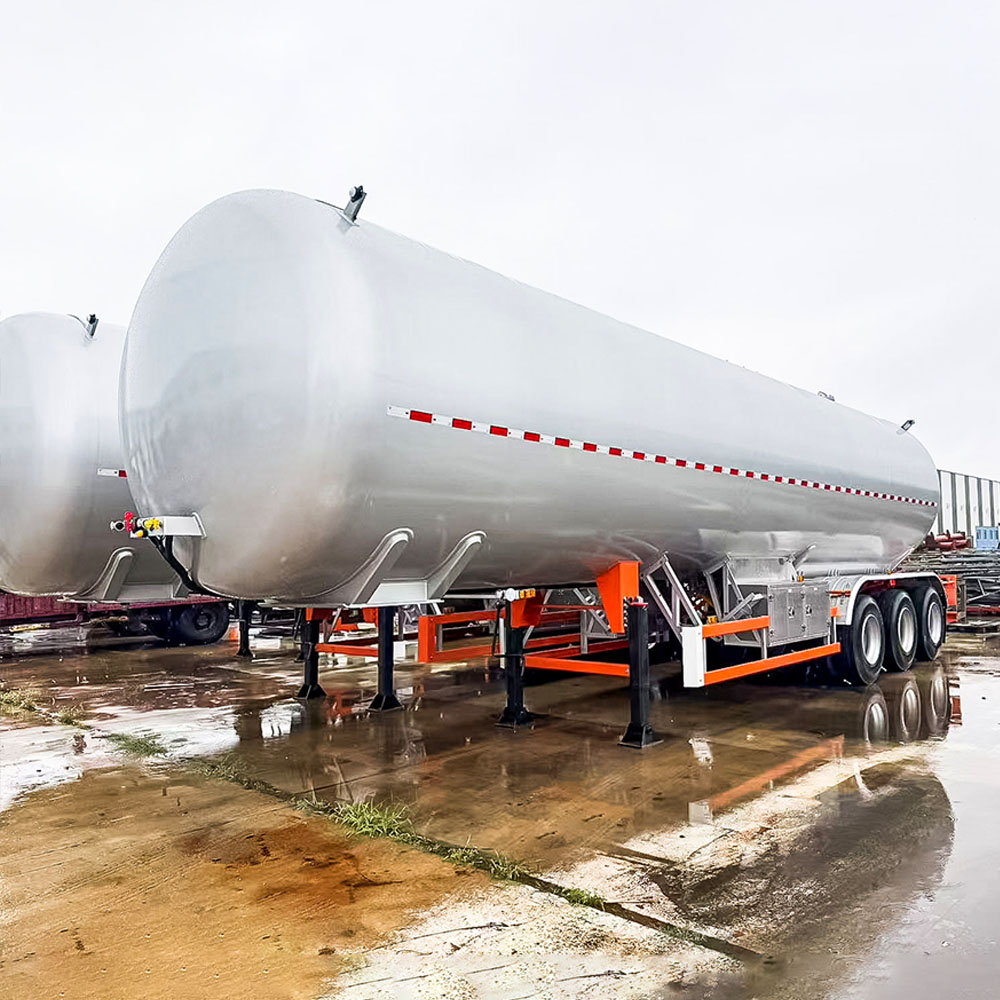

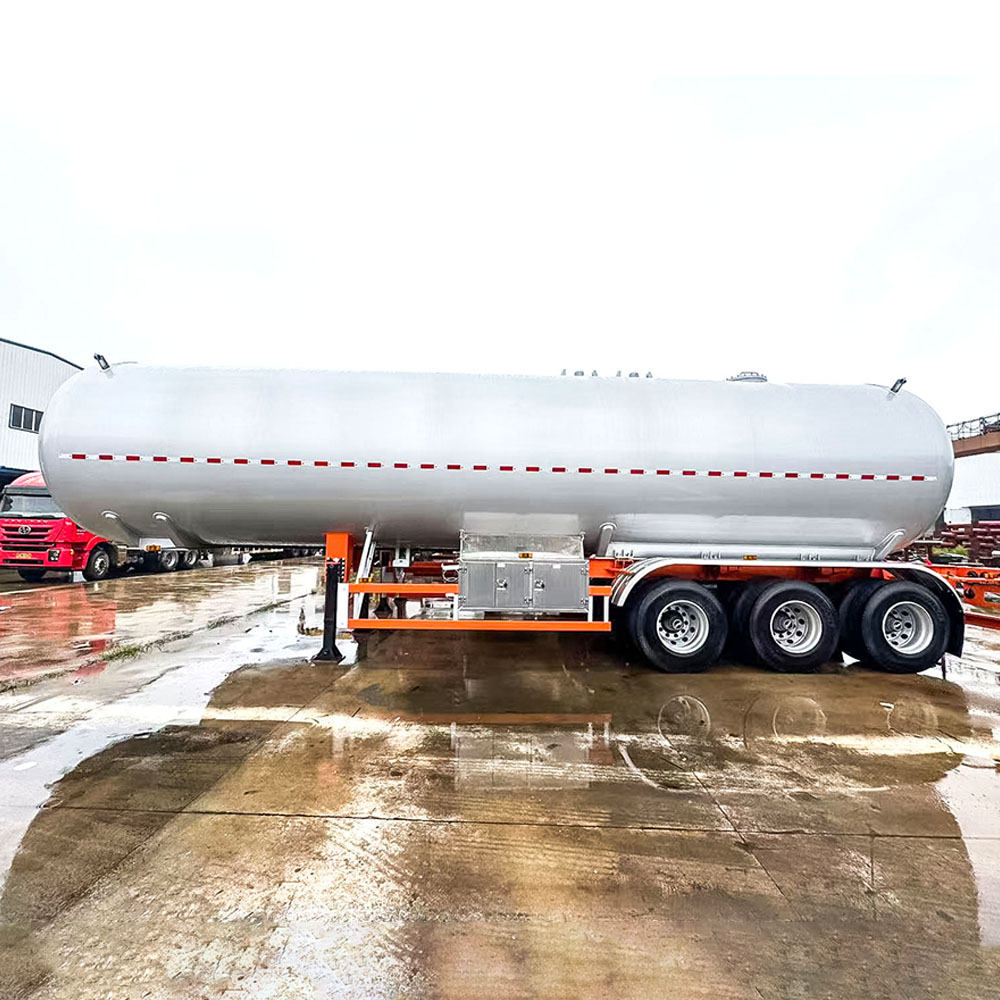

3 Axle 56m³ LPG Transport Tanker Trailer

Introduction

Liquefied Petroleum Gas (LPG) logistics demands the highest tier of pressure vessel engineering. ZW Group’s LPG semi-trailers are designed as high-pressure safety systems, ensuring the secure transport of propane and butane across long distances and varying environmental conditions.

Company Overview

ZW Group is an ISO-certified leader in pressure vessel manufacturing. We specialize in high-capacity gas transport solutions for the global energy sector, prioritizing explosion-proof engineering, precision automated welding, and comprehensive safety monitoring systems. With mature export capabilities and professional after-sales support, ZW Group supplies reliable pressurized gas tank trailers to gas distributors and energy operators worldwide.

Product Introduction

This LPG tanker is fabricated from pressure vessel-grade Q345R steel and engineered with a 12mm shell thickness to balance weight and mechanical strength. The cylindrical vessel is produced using automatic submerged arc welding followed by stress-relieving heat treatment (annealing) to stabilize the weld seams and reduce residual stresses. The tri-axle layout yields an effective volumetric capacity range of 54–60 cubic meters (typical 56,000 liters), enabling high payload efficiency with a design pressure rated at 1.77 MPa for pressurized LPG operations.

Product Video

Key Features

• High-Pressure Integrity: Engineered for 1.77 MPa design pressure with full X-ray inspection of critical weld seams to ensure long-term structural reliability.
• Tank Construction: Q345R pressure-vessel steel, 12mm shell thickness, automated submerged arc welding and annealing for controlled stress profiles.
• Integrated Safety Valve System: Multiple high-flow REGO pressure relief valves and excess-flow protection to automatically safeguard against over-pressurization during loading or thermal expansion.

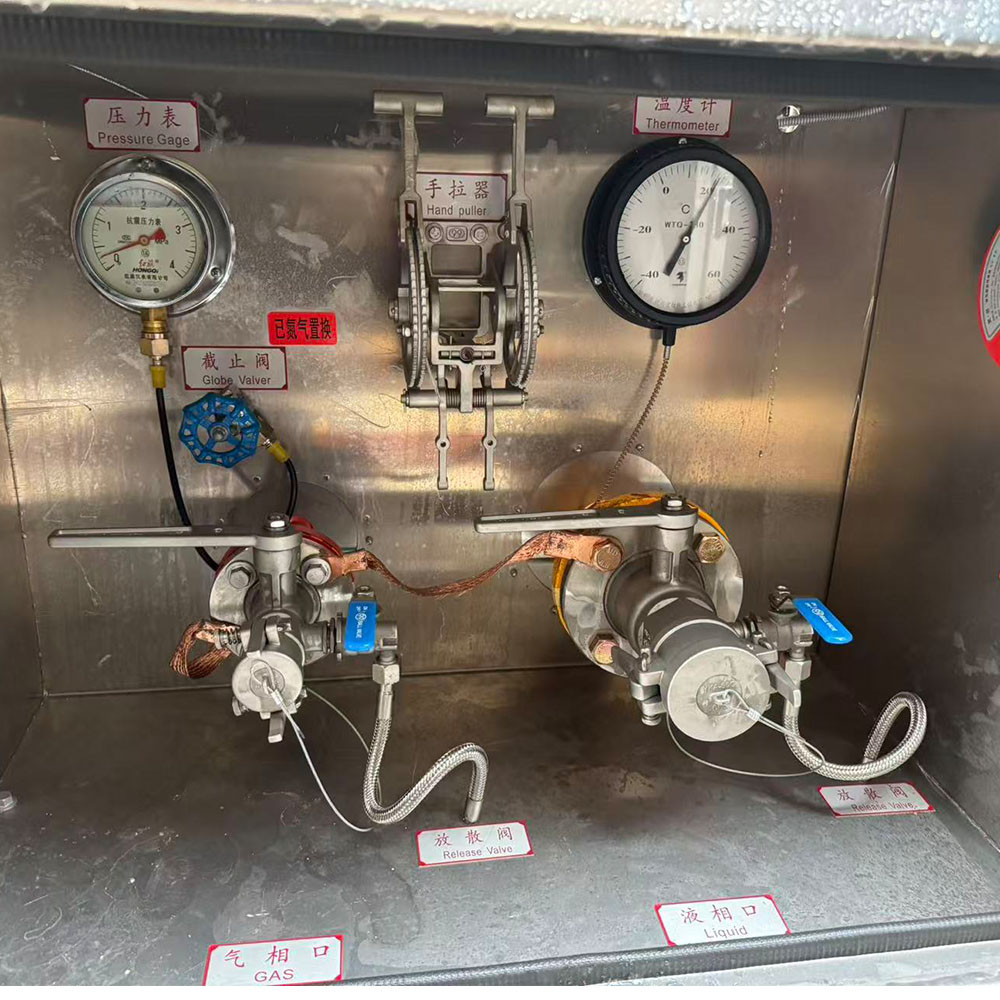

• Emergency Shut-Off: Remote-controlled pneumatic quick-closing valves on liquid and vapor lines to isolate the tank instantly in emergency scenarios.
• Static Grounding: Copper grounding strip and retractable reel to dissipate static buildup and reduce ignition risk during transfer operations.
• Liquid Level Monitoring: Protected dual-system level indication using a rotary vane gauge and a magnetic level gauge for precise filling control.
• Operational Accessories: Tool box and fire extinguisher bracket mounted per hazardous-goods requirements, plus tank-top walkway with non-slip grating and protective railings.

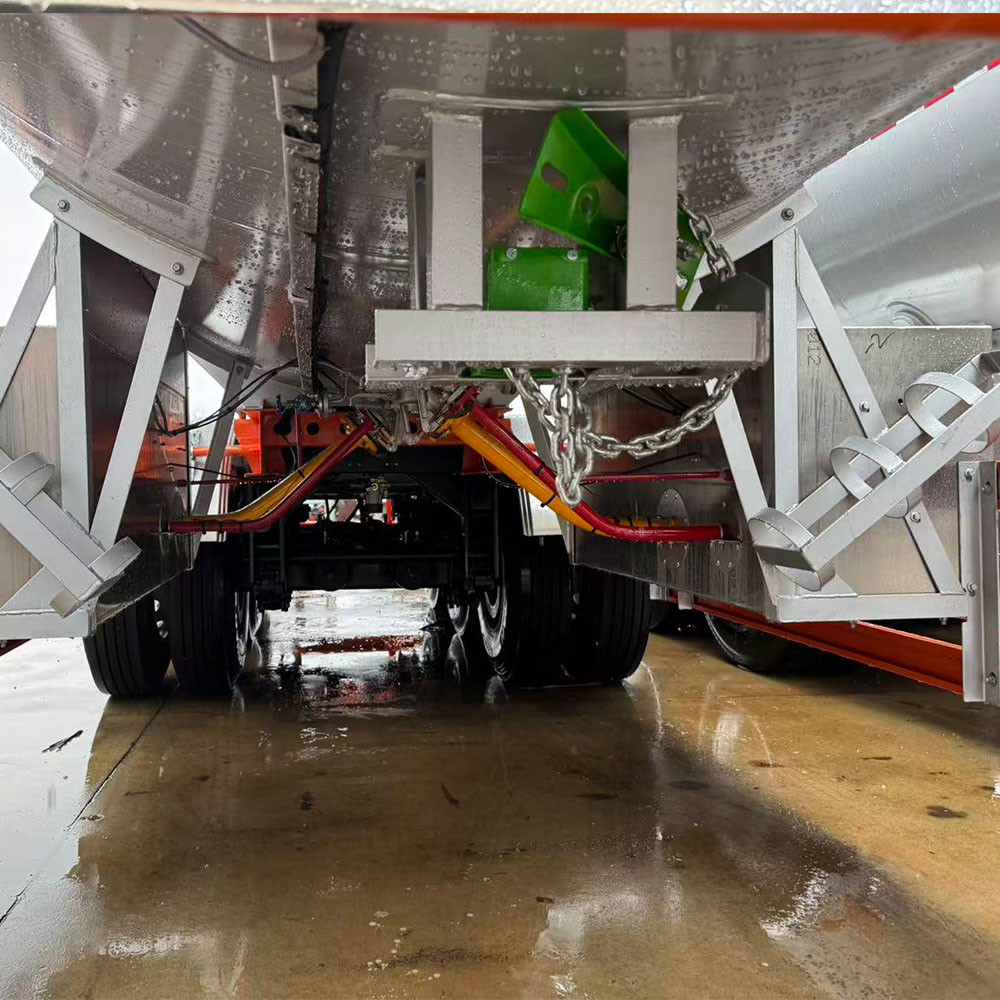

• Running Gear: Robust tri-axle assembly (FUWA / BPW options) sized 3 × 13T/16T to support road stability and payload optimization.
• Monocoque Design: Low center-of-gravity tank contour for improved handling and reduced trailer sway on highways.

Technical Specifications

Applications

The 3 Axle 56m³ LPG Transport Tanker Trailer is engineered for bulk LPG distribution across highways and regional routes. Typical applications include long-distance propane and butane delivery to gas stations, industrial users, energy depots, and municipal distribution networks. Its high-capacity, pressurized design also suits operators who require fewer trips and lower per-ton transport costs.

Performance and Value

By combining a thin-but-strong 12mm shell with Q345R steel and tri-axle payload optimization, this tanker delivers superior payload-per-trip performance and reduced operating cost per ton. The use of automated welding and post-weld annealing extends service life by minimizing residual stresses and lowering the risk of fatigue. Integrated safety systems reduce incident exposure, which can lower insurance and operational downtime for fleet operators.

Quality and Support

Every unit is subject to rigorous quality control: metallurgical inspection of Q345R material, 100% X-ray of weld seams, hydraulic pressure testing to 2.1 MPa, and air-tightness checks prior to shipment. ZW Group supplies technical training for operators and maintains an international spare-parts network to support REGO relief valves and other critical components, ensuring uptime for high-pressure LPG operations.

Why Choose ZW Group

ZW Group’s LPG trailers are produced in controlled facilities using robotic and automatic submerged arc welding processes, strict NDT regimes, and proven pressure-vessel metallurgy. Our engineering emphasis on safety — including REGO relief systems, emergency pneumatic shut-offs, and static grounding — makes our trailers a sound choice for hazardous-material transport in demanding commercial operations.

Factory and Shipment

Manufacturing follows ISO pressure-vessel protocols with anti-corrosion surface treatments and secure packing. Finished units are routed through professional RORO or containerized shipment channels, depending on buyer requirements, with documentation and testing certificates provided for customs and regulatory compliance.

Conclusion

For pricing and customization options for this 3 axle 56m3 LPG tanker trailer, please use the "Contact Us" or "WhatsApp" button on the page to request the latest quote. Contact us directly via WhatsApp for a high-pressure LPG transport solution.
